Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Shenzhen Jinshunlaite Motor Co., Ltd.
Contact Now

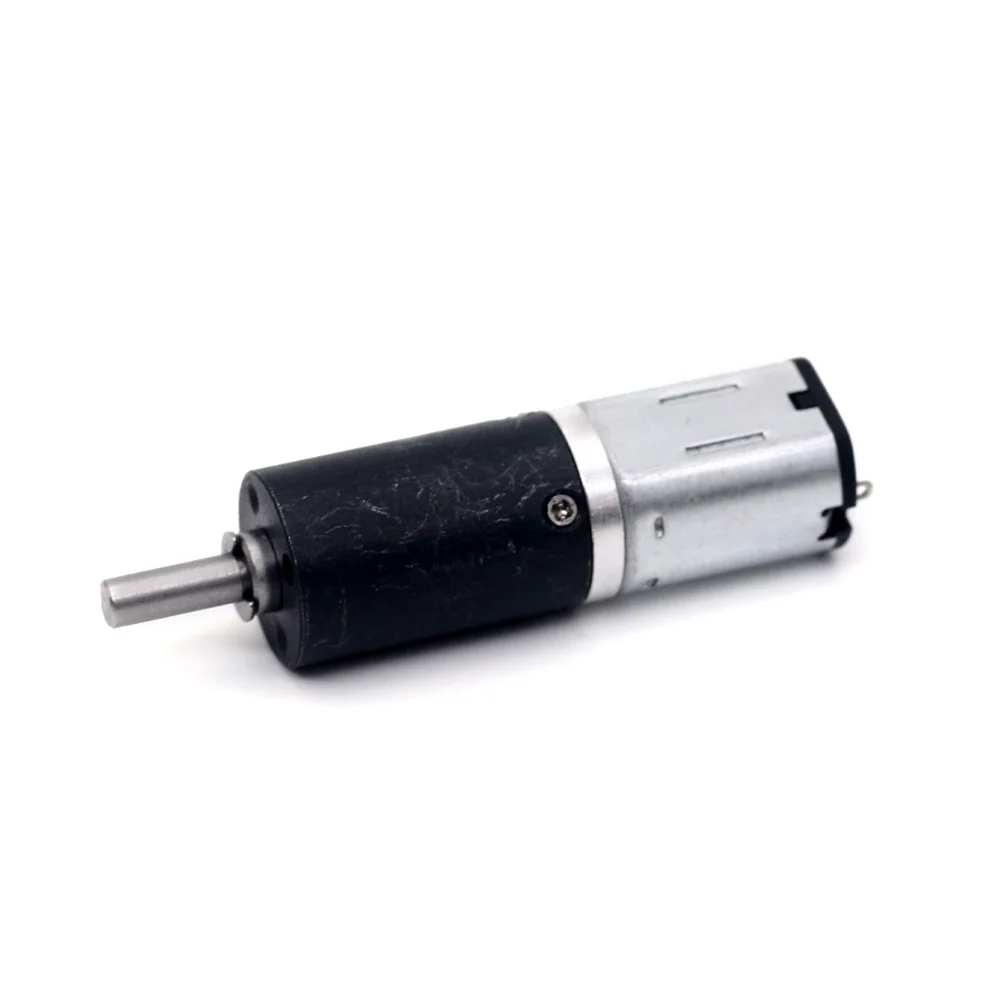

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Brand Name : ASLONG

Model Number : PG12-N20

Certification : CE,CC

Place of Origin : China

MOQ : 5 Pieces

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 Pieces Per Day

Delivery Time : 5-8 work days

Packaging Details : bubble +carton

Product Name : PG12-N20

Application : Robot

Motor type : planetary motor dc 6v

Keywords : Micro DC deceleration motor

Rated Voltage : 6V

Power : 0.25W

Size : 12mm

Typical Applications : robot

Output shaft diameter : 3MM (D-axis)

Noise : Low noise

Contact Now

N20 Small DC Gear Motors

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small MotorBrushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Description:

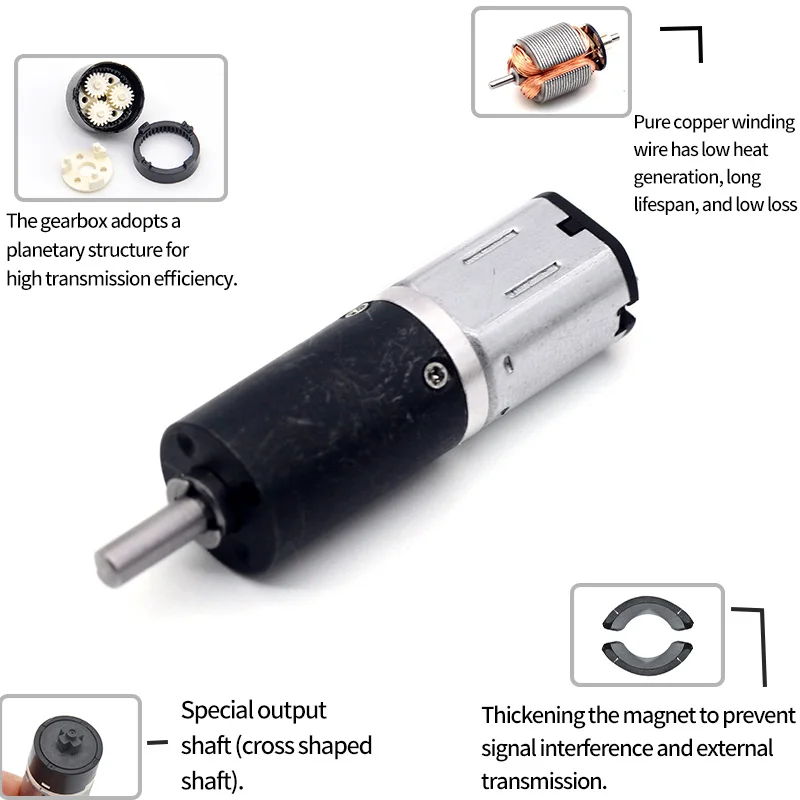

The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. This motor is equipped with a gearbox assembly to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is customization long and 3 mm in diameter.

This motor has low energy consumption and low noise. Replacement of spare parts will make your electrical and testing equipment look new. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.

Because of its small size, the motor fits in complex spaces of small-scale applications. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.

The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine.

Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm gearbox motors as following:

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
JGA12-N20B JGA12-N10 JGA12-N30 JGA1024-N20
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
JGY-N20 JGY-N20S JGA12-N20 sets GM12-15by

【Manufacturer's direct store】
We are a professional manufacturer of various DC reduction motors for over 14 years. We not only provide stable and excellent
quality, but also provide excellent services. If you need customized parameters and mass production, we can provide you. Please
feel free to contact us for more details.
【Quality of motor】
We have specialized equipment for testing and developing motors. We use all metal gear motors with long lifespan and noise. We will never cut corners to save costs. We will conduct strict testing on the motor before shipment to ensure that it meets the requirements.
【Give service to】
We will provide you with excellent service both before and after sales. You can always contact me for more product details.

Product Description
Types of
Micro DC deceleration motor
Model
PG12-N20
Power
0.25W
Rated voltage
6V
no-load current
25MA
no-load speed
9-500RPM
Reducer diameter
12mm
Output shaft diameter
3MM (D-axis)
Adjustable speed, forward and reverse rotation, customizable
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

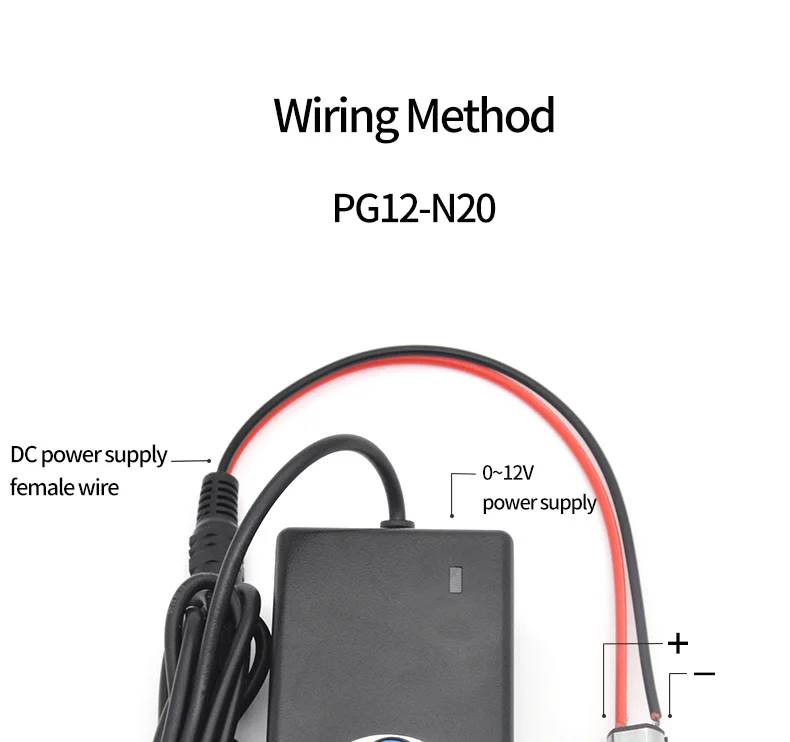

Suit 1 Motor+12V2A power supply
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

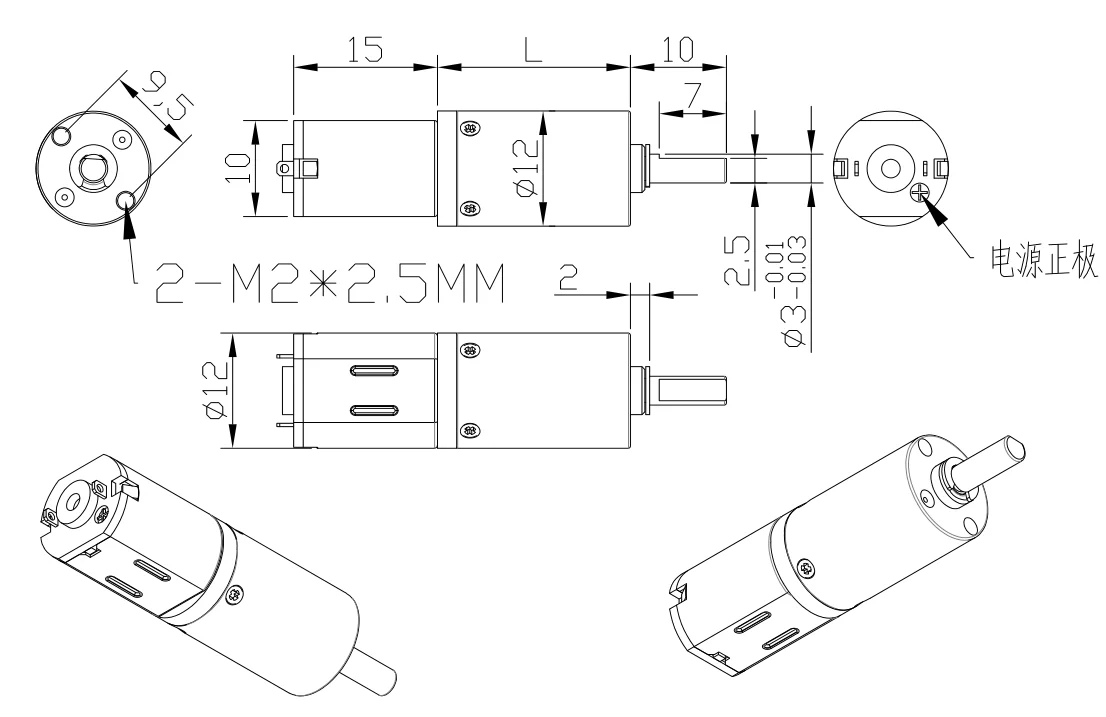

product details
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Company Profile
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Shenzhen Jinshunlaite Motor Co., Ltd. is a manufacturer of dc gear motor,bldc motor,worm gear motor,micro motor,pwm motor etc, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Delivery and Packing
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
FAQ
1)What's the price?
We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.
Kindly chat with our saler to confirm it.

3)What's the delivery time?
At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.

4)Can you send some samples before the order?
Yes of course,we must send the sample to confirm the quality with you first.
UPS,TNT,FEDEX or DHL are all available.

5)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be labeled on the motors.

6)What's the payment term?
For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

7)How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.

8)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.
It can be printed,emboridered,embossed/jacquard.

9)What's the payment term?
For small amount,we accept 100% payment via Western Union.
For large amount,we accept 30% telegraphictransfer(TT) as the deposit.
And the rest must be paid before shipping.

10)How to deliver the goods?
If goods quantity is small,we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and clients don't need to pay the custom charge.
If goods quantity is large,we will ship by sea.
It will be very economical.

11)Does your company supply to any famous hotels?
As a leading manufactuer of hotel products,we have many famous hotel and resort clients.
Such as InterContinental Hotels Group,Marriott Hotel,The Ritz Carlton Hotel and son on.
If you need some samples of them,we can send out.

12)Any other questions kindly chat with our sales,they will do the best to serve you.
